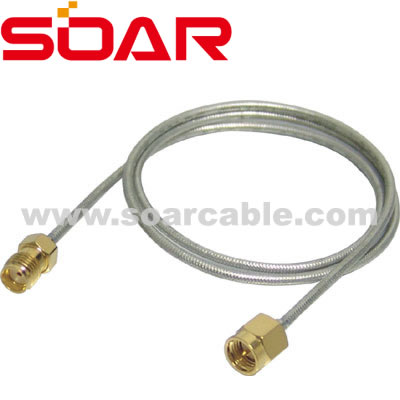

Series SMA are very popular thread coupling miniature coaxial
connectors.Which have the excellent performances of high reliability,high
mechanical strength,high durability,and optimum electrical properties, are
widely used to connect RF coaxial cables for mobile communication equipments and
electronic communication instruments.
The interface dimensions and technical characteristics are in accord with the
specifications of MIL-C-39012.IEC 169-15 and CECC 22110.
Key Performance | |||||
Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | ||
Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 1000V(r ms) | ||
Frequency range | With flexible cable | 0~12.4GHz | Contact resistance | Center conductor | ≤3mΩ |
With semi-rigid/flexible cable | 0~18GHz | Outer conductor | ≤2mΩ | ||
VSWR | With flexible cable | ≤1.15+0.02F | Durability | 500 Cycles | |
With semi-rigid/flexible cable | ≤1.05+0.02F | ||||
Material And Plating | |||||
Body | Brass , gold plated or stainless steel passivated | ||||
Male center contacts | Brass , gold plated | ||||
Female center contacts | Beryllium copper , gold plated | ||||
Insulators | PTFE | ||||
Gaskets | Silicon rubber | ||||
Crimp ferrules | Copper alloy , gold or nickel plated
|
PE bag per pcs. Customized packaging is available.
Carton size: 46cm*30cm*26cm. Customized carton is available.
Shipping by air: 2-6days.
Shipping by vessel: 10-30days depend on the port of destination.
1.Customers' samples, drawings(ACD,PDF,Pro-E,Soliwork) are acceptable.
2.OEM/ODM are acceptable.
3.Samples free for all customers,Whether you are new or regular customers. of
course. It would be better less than 5pcs on basis of regular connectors.
We'll charge our customers for very special customized design if extra fee
happened.
4.We have more than 10 years experience in dealing with the FAKRA SMB connector.
We have a very professional team to reply all of your questions promptly.
5.Very strictly quality control, 100% inspection before delivery. 2 years
warranty
